Full ArduPilot Mega kit (soldered, code loaded and ready to fly)

description:
Be part of the exciting new world of open source UAVs with ArduPilot Mega (APM), the best-selling open source autopilot. APM is a "universal autopilot": it can turn any RC vehicle--airplanes, multicopters, helicopters, rovers, boats, and more-- into fully-autonomous drone. Just add the APM board to your model and use the free desktop software to load the code for the vehicle you've got: ArduCopter, ArduPlane, ArduRover and more to come.

Features

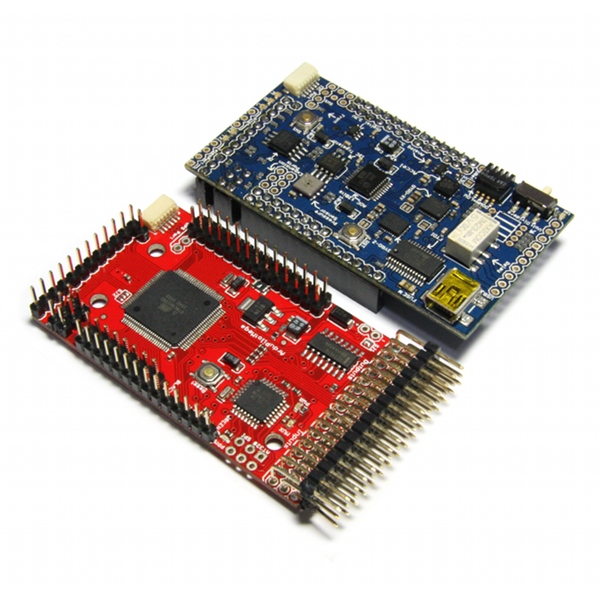

Ardupilot Mega 1.4 w/ATMega 2560

>Designed to be used with autonomous aircraft, quadcopters and helis
>Based on a 16MHz Atmega2560 processor.
Built-in hardware failsafe that uses a separate circuit (multiplexer chip and ATMega328 processor) to transfer control from the RC system to the autopilot and back again.
>Includes ability to reboot the main processor in mid-flight
>Dual-processor design with 32 MIPS of onboard power
>Supports 3D waypoints and mission commands (limited only by memory--approximately 600-700 waypoints with current code, but can be adapted for more)
>256k Flash Program Memory, 8K SRAM, 4K EEPROM
>Comes with a 6-pin GPS connector (EM406 style).
>Has 16 spare analog inputs (with ADC on each) and 40 digital input/outputs to add additional sensors
>Four dedicated serial ports for two-way telemetry (using optional XBee modules) and expansion
>Can be powered by either the RC receiver or a separate battery
>Hardware-driven servo control, which means less processor overhead, tighter response and no jitters
>Eight RC channels (including the autopilot on/off channel) can be processed by the autopilot.
>LEDs for power, failsafe status, autopilot status

Ardupilot Mega IMU Shield/Oilpan Rev-H

>Dual 3.3V Regulator!!! (One dedicated for analog sensors!)
>Relay switch for cameras, lights or payloads
>12-bit ADC for better Gyro/Accel/AirSpeed resolution.
>Built-in 16MB Data Logger (The Black Box)
>Piano DIP switch for servo reverse or user customizable
>Built-in FTDI, making the board native USB
>Dedicated Modem/OSD port
>I2C Port with incoming "Daisy Chain board" allowing you to build sensor arrays.
>Two user-programmable buttons (one momentary, the other slide).
>10-Bit analog expansion ports.
>Reset button
>Built-in voltage dividers to measure aircraft battery voltage, down to the individual cell. Includes 4 3.9k resistors that you can solder in to measure standard LiPo battery packs.
>Tons of Status LEDs
>New vibration resistance Invensense Gyros (Triple Axis)
>Analog Devices ADX330 Accelerometer
>AirSpeed sensor port (optional, sold separately).
>Absolute Bosch pressure sensor and temp for accurate altitude

MediaTek MT3329 GPS 10Hz + Adapter basic

>Based on MediaTek Single Chip Architecture
>Dimension：16mm x 16mm x 6mm
>L1 Frequency, C/A code, 66 channels
>High Sensitivity：Up to -165dBm tracking, superior urban performances
>Position Accuracy：< 3m CEP (50%) without SA (horizontal) >Cold Start is under 35 seconds (Typical)
>Warm Start is under 34 seconds (Typical)
>Hot Start is under 1 second (Typical)
>Low Power Consumption：48mA @ acquisition, 37mA @ tracking
>Low shut-down current consumption：15uA, typical
>DGPS(WAAS, EGNOS, MSAS) support (optional by firmware)
>USB/UART Interface
>Support AGPS function ( Offline mode : EPO valid up to 14 days )
>Includes a molex cable adapter, 5 cm!!
>Includes the new basic adapter!!

PRICE:-----------------------------Rp. 3850.000,00-------------------------------
